Fig.03.33

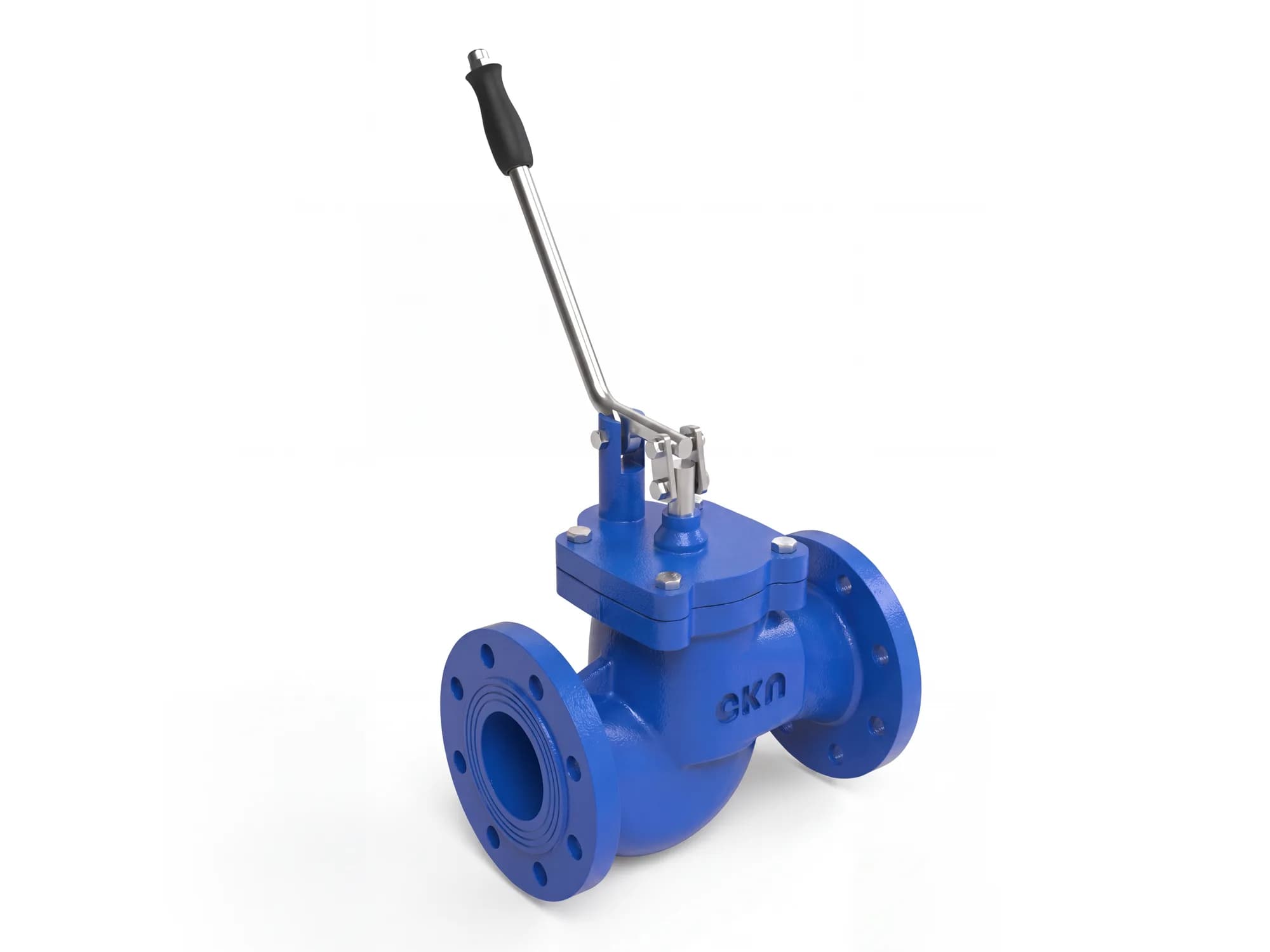

Quick-Opening Valve
Used in hot and cold water systems, thermal oil systems, steam systems and all piping systems carrying media that are neither acidic nor alkaline.
DN15–100sizes9DIN STANDARD VALVES
Configuration
Enter a quantity to add it.
Technical dimensions
| Size | Dmm | Kmm | Amm | dxn | Lmm | Weightkg |
|---|---|---|---|---|---|---|
| DN 15 | 95 | 65 | 16 | 14x4 | 90 | 8.5 |
| DN 20 | 105 | 75 | 18 | 14x4 | 95 | 10.5 |
| DN 25 | 115 | 85 | 18 | 14x4 | 100 | 11.7 |
| DN 32 | 140 | 100 | 18 | 14x4 | 105 | 13.9 |
| DN 40 | 150 | 110 | 18 | 18x4 | 115 | 14.8 |
| DN 50 | 165 | 125 | 18 | 18x4 | 125 | 17 |
| DN 65 | 185 | 145 | 18 | 18x4 | 145 | 23.6 |
| DN 80 | 200 | 160 | 20 | 18x8 | 155 | 32.3 |
| DN 100 | 220 | 180 | 20 | 18x8 | 175 | 44.5 |
Scroll the table sideways to see every dimension.
Material list
| No | Part | Material |
|---|---|---|
| 1 | BODY | GGG 40.3GSC 25AISI 316GG 25RG 5RG 10 |
| 2 | COVER | GGG 40.3GSC 25AISI 316GG 25RG 5RG 10 |
| 3 | STEM | X5 CrNi 189RG 5(CuSn5) |
| 4 | BUSH | RG 5(CuSn5)RG 10(CuSn10) |
| 5 | DISC | RG 5(CuSn5)RG 10(CuSn10) |
| 6 | PACKING GLAND | GGG 40.3 |
| 7 | COVER BILLET | RG 5(CuSn5)RG 10(CuSn10) |
| 8 | HANDWHEEL | GG 25 |
| 9 | PACKING | PTFE |
| 10 | GASKET | KLİNGRİT(NON ASBESTOS) |
| 11 | WASHER | S355JR |
| 12 | NUT | S355JR |
| 13 | BOLT | S355JR |
| 14 | NUT | S355JR |
| 15 | BOLT | S355JR |
| 16 | SEALING BUSH | S355JR |
| 17 | INDICATOR | MS 58(CuZn40Pb2) |
Specifications
Safe working temperature-10/+240°C
Standards
- Connection
- TS EN 1092-1TS EN 1092-2TS EN 1092-3
- Dimension
- TS EN 558 Series-1
Applications
Hot water systemsCold water systemsThermal oil systemsSteam systemsFlow systems carrying neither acidic nor alkaline media
