Fig.10.02

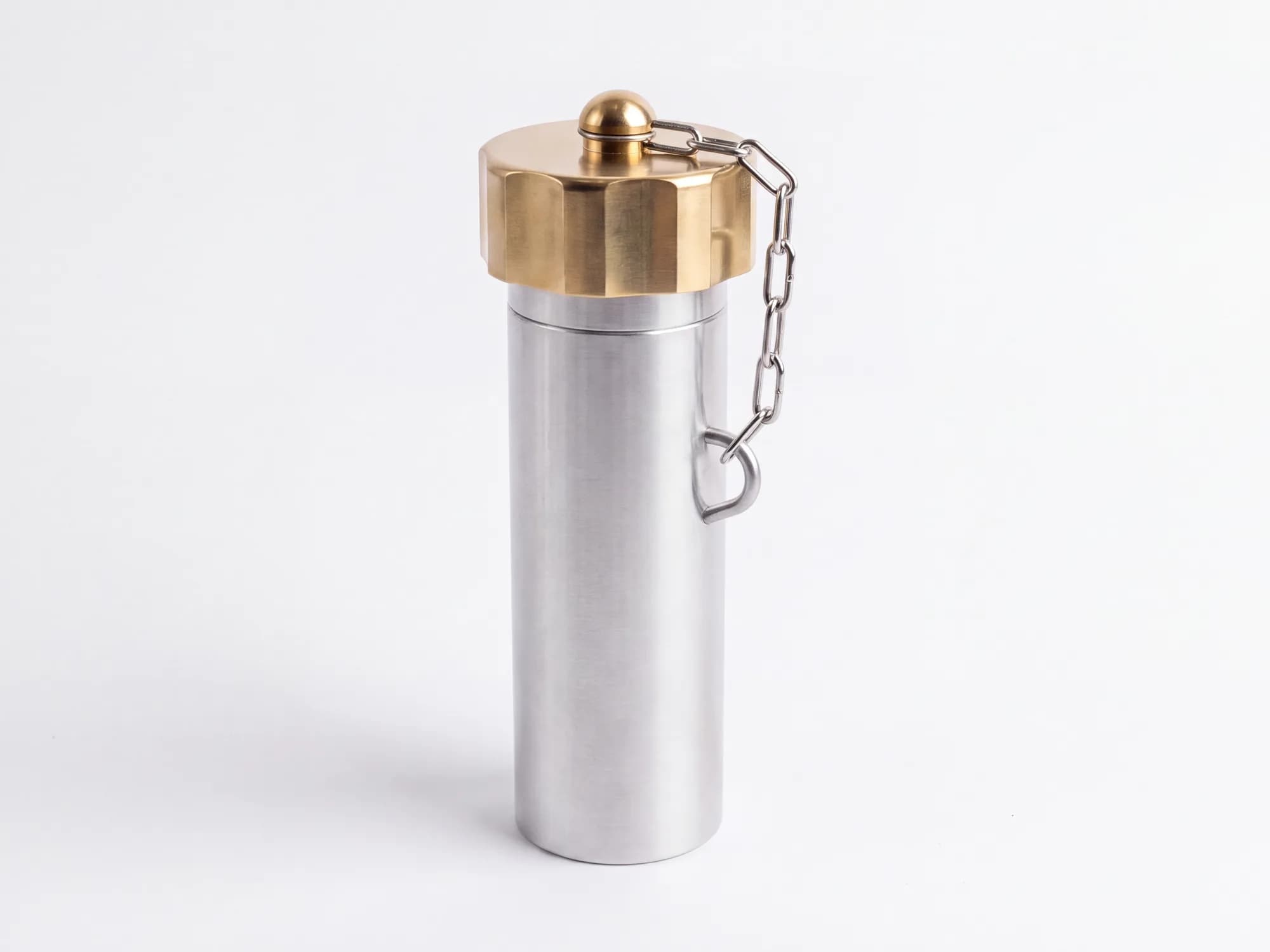

Sounding Plug
Used at the top of all deck-connected tanks to take measurements.
DN40–50sizes2SHIP OUTFITTING EQUIPMENT AND ACCESSORIES
Configuration
Enter a quantity to add it.
Technical dimensions
| Size | amm | bmm | b1mm | dmm | Weightkg |
|---|---|---|---|---|---|
| DN 40 | 24.5 | 24 | 20 | 115 | 1.65 |
| DN 50 | 25 | 24 | 20 | 125 | 2 |
Scroll the table sideways to see every dimension.
Material list
| No | Part | Material |
|---|---|---|
| 1 | BODY | S235JRC45S275JRAISI 316AISI 304 |
| 2 | PLUG | AISI 316AISI 304RG5(CuSn5) |
Standards
- Other
- Manufactured to the standards requested.
Applications
Deck-connected tanks
