it is used as a fast opening valve at fuel circuits with manuel control.

Part Name Material
BODY GGG 40.3 / GSC 25 (GP240GH) / RG 5 (CuSnZn5Pb5-B)
COVER GGG 40.3 / GSC 25 (GP240GH) / RG 5 (CuSnZn5Pb5-B)
SHAFT X5CrNi 189
DISC X5CrNi 189
BUSH X5CrNi 189
BILLET RG 5 (CuSn5Zn5b5-B)
HANDWHEEL GG 25 / S235 JR
GASKET KLINGRIT
SPRING PEN STEEL
PISTON MS 58 (CuZnPb2)
ORING NBR

Category:

Şema ve Teknik Bilgiler

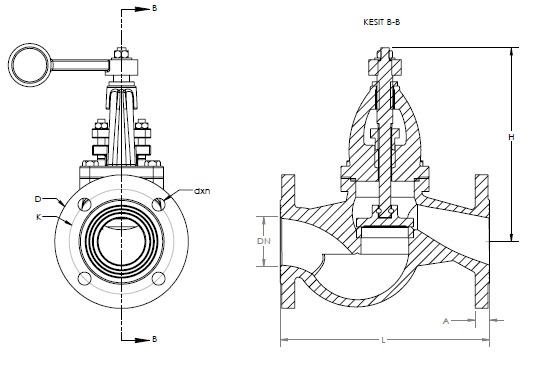

DN D K A dxn L H1 H Weight (KG)
15 95 65 16 14×4 130 277 285 6,15
20 105 75 18 14×4 150 287 297 7,1
25 115 85 18 14×4 160 292 304 8
32 140 100 18 18×4 180 320 333 10,55
40 150 110 18 18×4 200 351 362 12,55
50 165 125 18 18×4 230 362 382 15,3
65 185 145 18 18×4 290 382 402 21,15
80 200 160 20 18×8 310 430 455 26,5
100 220 180 20 18×8 350 455 485 42,65
